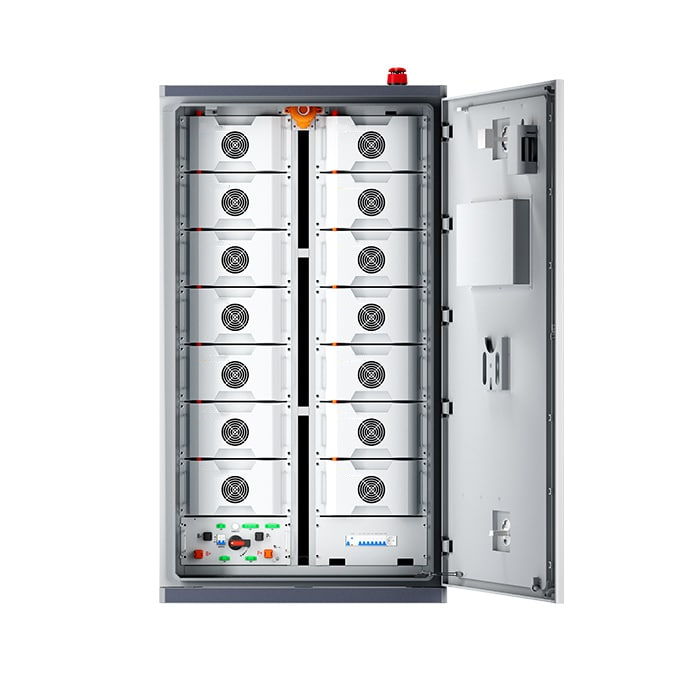

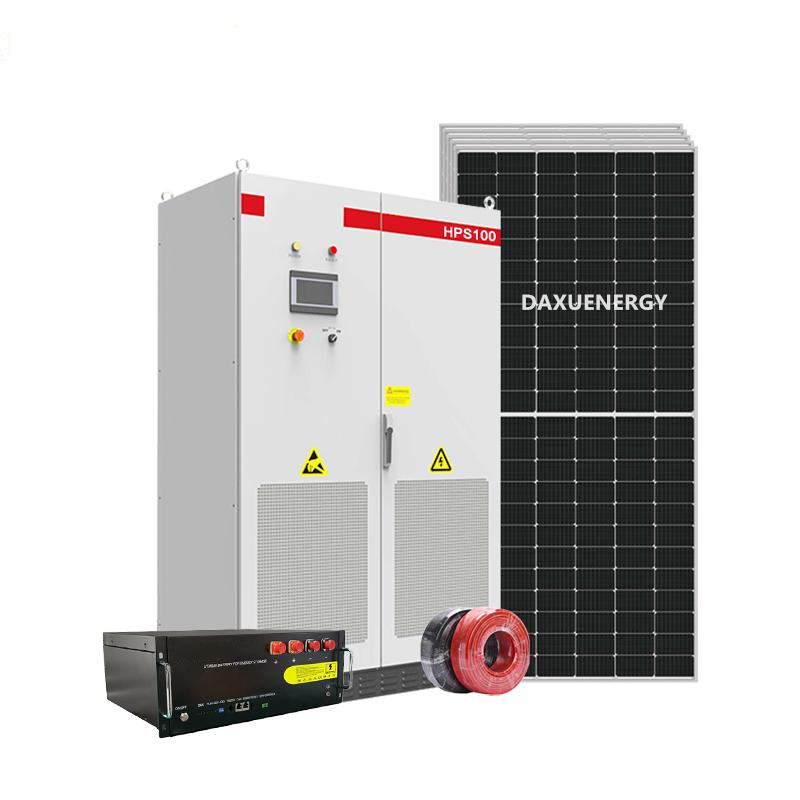

100KW Hybrid Inverter Solar System with 200kWh Energy Storage Cabinet

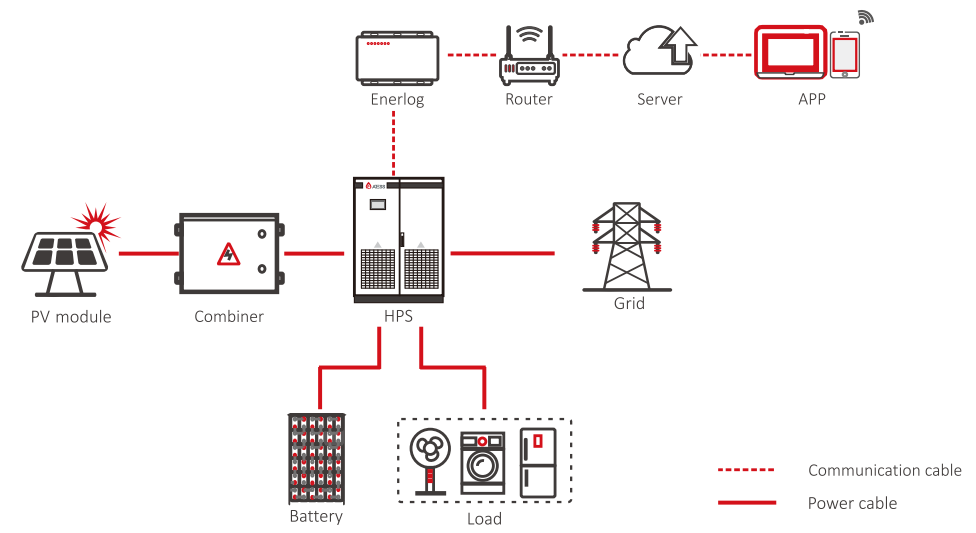

The hybrid solar system is an electricity generating solar PV power system that is connected to the utility(State) grid, and can be
connected with batteries for electricity storage. Users can sell electricity to the Utility Grid, as well as storing power in the battery packs. Working Modes priority will be set during installation.
System Configuration
|
Model |
DX-HY100KW |
DX-HY300KW |
DX-HY500KW |
DX-HY1000KW |
|
Mono 600W Solar Panel |
180 Pieces |
540 Pieces |
840 Pieces |
1680 Pieces |
|
Grid Box/Cabinet |
Full set |
|||
|
Hybrid Inverter |
1X100kW |
2X150kW |
1X500kW |
2X500kW |
|
Lithium Battery |
200kWh |
600kWh |
1MWh |
2MWh |
|
DC Cable 4mm2 |
2000 Meter |
6000 Meter |
8000 Meter |
12000 Meter |
|
MC4 Connector |
100 Pairs |
200 Pairs |
300 Pairs |
600 Pairs |
|
Mounting System |
Customized Based On Installation Roof/Ground |
|||
|
PV Installation Tools |
1 Set |
1 Set |
1 Set |
1 Set |
